cmcid-103468 Bi Fold Door

Schüco ASS 70 FD Aluminium Bi-Folding Door System

Designed for flexibility and space-saving, Schüco’s ASS 70 FD has been designed with ultra slim and thermally efficient frames to allow openings that allow 90% of the area to open for unrestricted views.



Manufactured by Alchemy Architectural Aluminium Systems Ltd, the ASS 70 FD premium aluminium bi-folding door seamlessly connects living spaces to the outdoors, making it ideal for both residential and commercial projects.

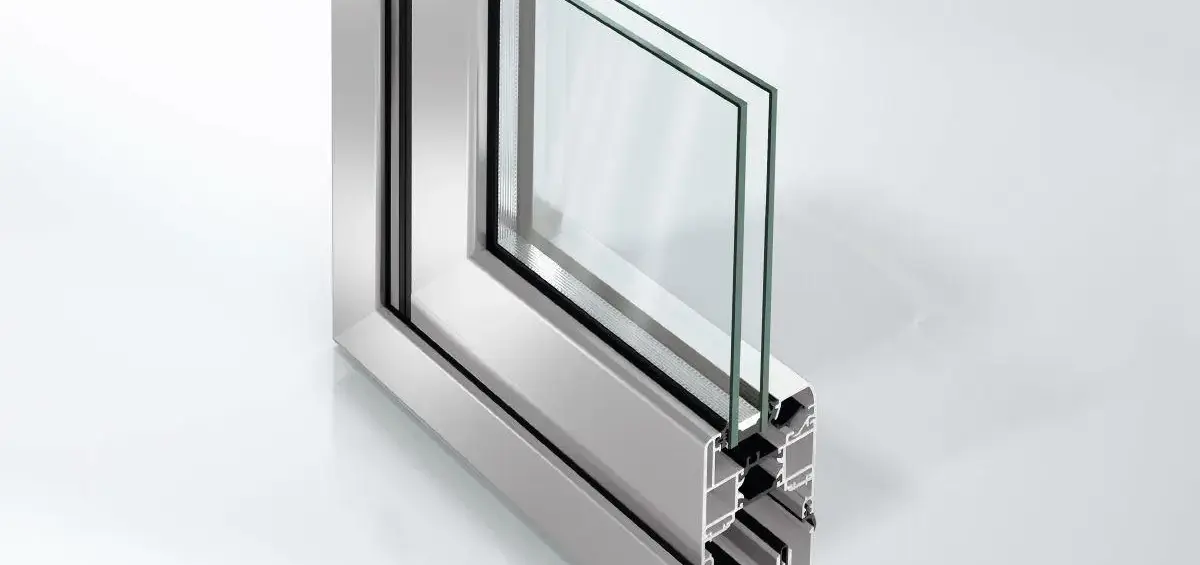

The ultra slim, thermally efficient frames glide easily and quietly on the roller carriages for smooth operation.



Combining modern performance standards with contemporary aesthetics, the ASS 70 FD offers a wide range of customisable opening types and configurations, including a turn/tilt ventilation vent and an openable 90° corner, allowing for extensive design freedom.

Schüco ASS 70 FD Highlights:

​

  • HD Design option available

  • Narrow interlock section, with face width sightlines of 120mm

  • Maximum glazing thickness of 45mm

  • Maximum Door Leaf Width of 1500mm (HD Design)

  • Maximum Door Leaf Height of 3000mm

  • Maximum door Leaf Weight 150Kg

  • Additional design option of magnetic retaining catch and matching flat door handle

  • Openable 90° corner

  • Established Schüco handle design

  • Easy -access threshold with tested watertightness to 300 Pa

  • Inward or outward opening

  • Burglar resistance up to RC2, compatible to PAS 24 achieving document Q requirements

  • Available in a wide choice of colours, with dual colour options
