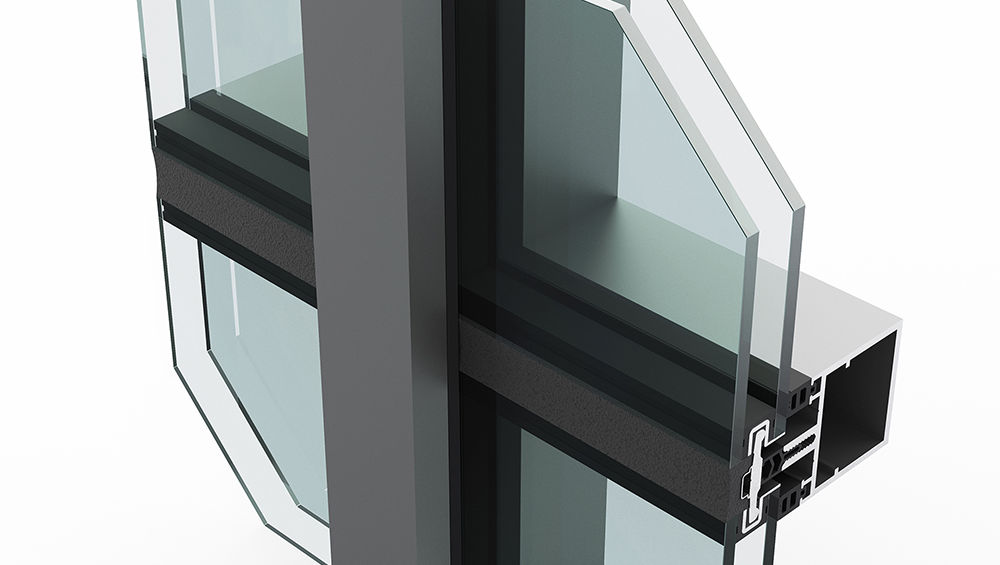

The SF52 aluminium curtain walling has been designed by Senior Architectural and is manufactured by Alchemy Architectural Aluminium Systems in the UK. Senior Architectural stands as the country's largest privately-owned aluminium fenestration systems house.
Their products are used across various sectors, including education, healthcare, leisure, and mixed-use residential and commercial developments. Featuring cradle-to-cradle recyclability, the SF52 curtain walling provides exceptional strength and can be endlessly recycled. Additionally, it has been designed to exceed current building regulations, offering a stylish solution for both ground floor and high-rise projects.
Senior SF52 Key Features:
-
Slim sightlines – 52mm
-
Enhanced thermal performance
-
Available in an unlimited choice of colours and finishes, inside and out.
-
Fully compatible with Senior Architectural aluminium window and door systems
-
Frameless vent options available
-
Can be specified as either mullion drained or zone drained.
-
Extensive range of profile depths to suit various structural requirements
-
Large choice of capping options
-
Single, double, and triple glazing options from 6mm to 52mm
-
CWCT and EN13830 tested
-
A 46dB reduction is achievable
-
SF52 Options:
-
SF52 fully capped - A traditional zone drained, fully capped, aluminium curtain walling system with uniform slim 52mm sightlines
-
SF52 silicone glazed - A silicone glazed aluminium curtain walling system with uniform slim 52mm sightlines, featuring a specially designed toggle system to allow externally frameless façades
-
SF52 vertical capped - A vertically capped aluminium curtain wall system with uniform slim 52mm sightlines, featuring a specially designed toggle system used horizontally to allow externally frameless transoms
-
SF52 horizontal capped - A horizontally capped aluminium curtain wall system with uniform slim 52mm sightlines, featuring a specially designed toggle system used vertically to allow externally frameless mullions
-
SF52 mullion drained - A traditional fully capped mullion drained aluminium curtain walling system with uniform slim 52mm sightlines with different mullion and transom profiles
-
SF52 sloped system - Fully compatible with our SF52 mullion drained aluminium curtain wall system and sharing many of the same aesthetic and performance characteristics, our sloped glazing system is a stick type front loaded system using spring pins and a specially designed step cut transom joint. It is ideally suited for creating 15 degrees and sloping vertical walls, and stunning roof atriums
